Get the joint list right before the yard sees it.
Pipesurf checks your joint list on upload, keeps every version, and puts revisions through approval so the yard knows what changed.
Sound familiar?
What the week looks like before Pipesurf.
One duplicate joint number.
It travels all the way to the bench before anyone notices.
Which version is live?
Three copies of the joint list, and the yard is working from the wrong one.
A revision lands mid-job.
You can’t see which joints are already welded before you change them.
Pipe supports on a separate sheet.
Nobody downstream knows which supports go with which spool.
Caught at the desk, not at the bench
Watch a joint list with four mistakes go in.
| Drawing No | Sheet | Spool | Joint | Size | Sch | Material 1 | Material 2 | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3016-01-XS-6"-H1-6301 | 1 | SPL-001 | SW-101 | 6 | 40 | A106 Gr.B | A234 WPB | |
| 3 | 3016-01-XS-6"-H1-6301 | 1 | SPL-001 | SW-102 | 6 | 40 | A106 Gr.B | A234 WPB | |
| 4 | 3016-01-XS-6"-H1-6301 | 1 | SPL-002 | SW-103 | 4 | 80 | A106 GrB | A234 WPB | ✕ Material not on your list✓ Fixed |
| 5 | 3016-01-XS-6"-H1-6301 | 2 | SPL-002 | SW-104 | 4 | 80 | A106 Gr.B | A234 WPB | |
| 6 | 3016-01-XS-6"-H1-6301 | 2 | SPL-002 | SW-104 | 4 | 80 | A106 Gr.B | A234 WPB | ✕ Duplicate joint number✓ Fixed |
| 7 | 3016-01-XS-6"-H1-6302 | 1 | SPL-003 | SW-106 | 3 | 160 | A106 Gr.B | A105 | |
| 8 | 3016-01-XS-6"-H1-6302 | 1 | SPL-150 | SW-107 | 3 | 160 | A106 Gr.B | A105 | ✕ Spool sequence break✓ Fixed |
| 9 | 3016-01-XS-6"-H1-6302 | 2 | SPL-004 | SW-108 | — | 40 | A106 Gr.B | A234 WPB | ✕ Missing size✓ Fixed |
- 01Upload the ExcelThe joint list goes in as it is.
- 02Checked on uploadAgainst your own welders, materials and sizes.
- 03Duplicate joint numberCaught.
- 04Spool sequence breakCaught.
- 05Material not on your listCaught.
- 06Missing sizeCaught.
- 07Fixed at the deskNot at the bench.
Upload the Excel. The joint list goes in as it is.
Checked on upload. Against your own welders, materials and sizes.
Duplicate joint number. Caught.
Spool sequence break. Caught.
Material not on your list. Caught.
Missing size. Caught.
Fixed at the desk. Not at the bench.
What changes with Pipesurf
Four things that stop happening the week you go live.

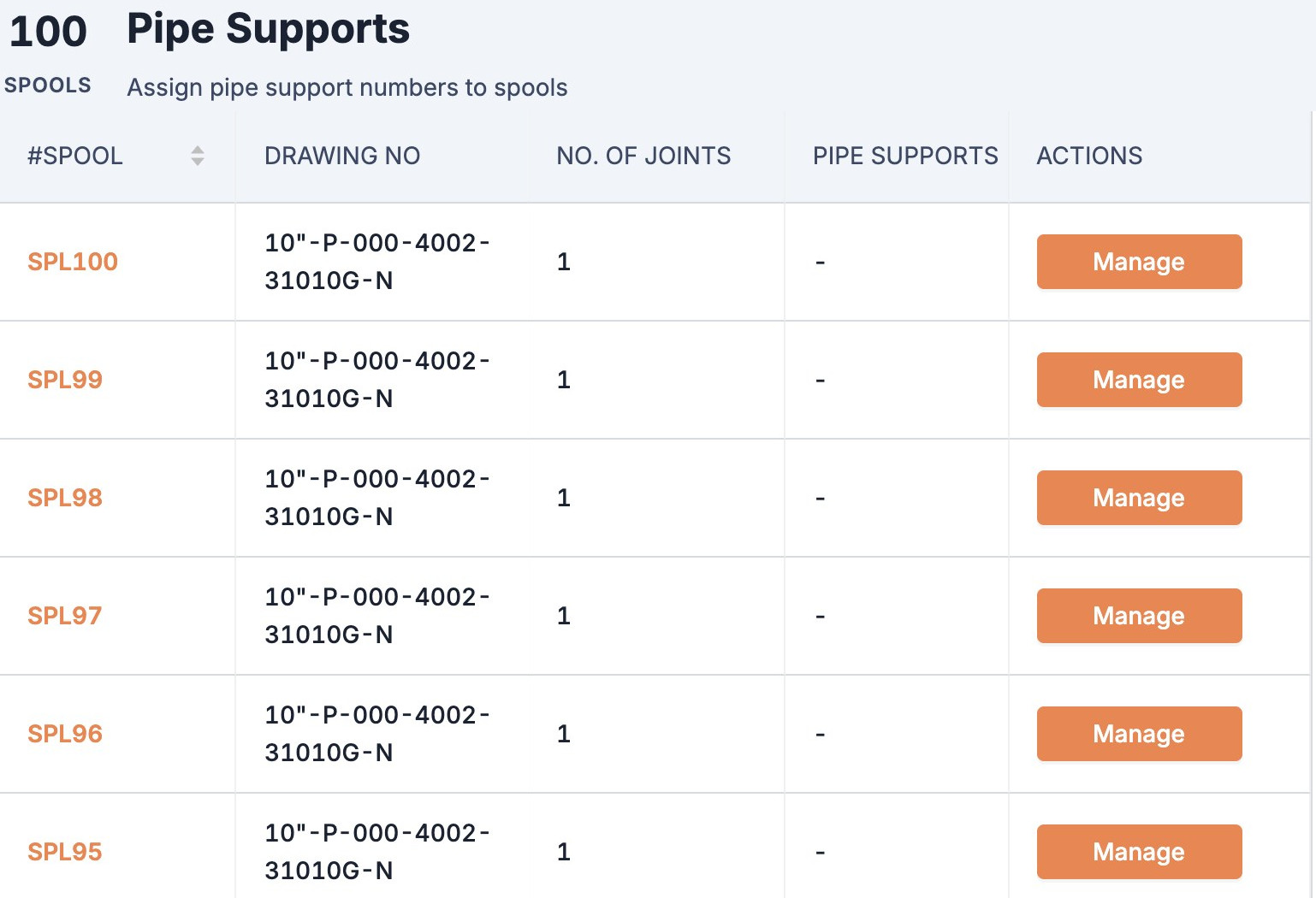

With PipesurfPipe supports, on the spool
Record one or more pipe support numbers against each spool, so downstream teams know which supports belong where.
What you get
Built around the work you actually do, not around a spreadsheet.
Catch it at upload
Duplicates, broken sequences, missing fields and off-list materials are flagged straight away.
QC completes the rest
Technical details are added by QC before the Project Manager signs off.

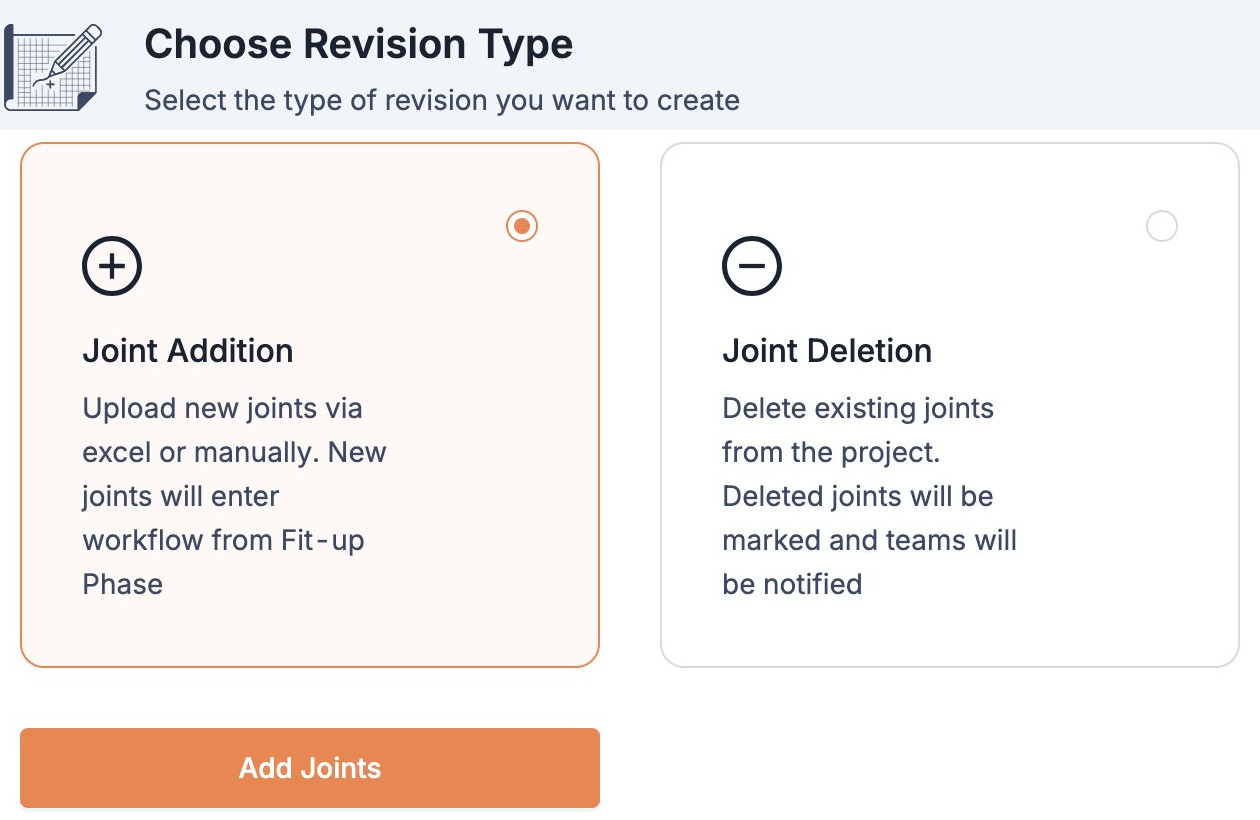

Revise without chaos
Add or remove joints through approval, and nothing already built is lost.
Supports on the spool
Assign one or more support numbers to each spool.
Pipesurf for Draftsmen
What Pipesurf looks like for Draftsmen, start to finish, in 0:59.
Who you work with
Every hand-off in the job sits on one record: yours, the people you work with directly, and everyone else.
Every joint. Every spool. Under control.
See how Draftsmen work in Pipesurf, on a project like yours. 30 minutes.
